Brand VPP, VPV
Wires for submersible electric motors. Brand VPP, VPV
Installation wire with copper conductive core with polyethylene insulation in a polyethylene sheath
Certificates
Wires for various purposes

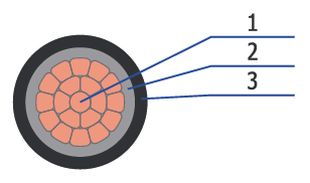

Main design elements
1. Round, stranded conductor:
- Material
Copper (Cu)
Cross-section, mm2 (Cu):
- round cores - (1.5-95) mm2
2. Insulation:
- polyethylene
3. Shell:
-polyethylene
-polyvinylchloride
Main area of application
For connection to electric networks with a nominal voltage of 380, 660 and 3000 V AC with a frequency of 50 Hz of water-submersible electric motors operating for a long time in the water of artesian wells: under pressure up to 7.09 MPa at ambient temperatures from -40 to 80 ° C.
