Brand SHVVP
Household wires 450/750V. Brand SHVVP
Flexible copper conductor, parallel cores, with polyvinyl chloride insulation and sheath
Standard
GOST 7399-97, EN 50525-2-11

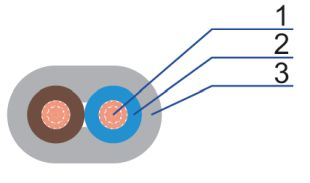

Main design elements
1. Round multi-wire or single-wire conductive core:
- Material: Copper (Cu)
Cross-section, mm2 (Cu):
- round cores - (0.75-2.5mm2)
2. Insulation:
-Polyvinylchloride (В)
3. Outer sheath:
-Polyvinylchloride (В)
Main area of application
For connection of electric machines and appliances for household and similar applications to the electrical network with rated alternating voltage up to 450/750 V.
